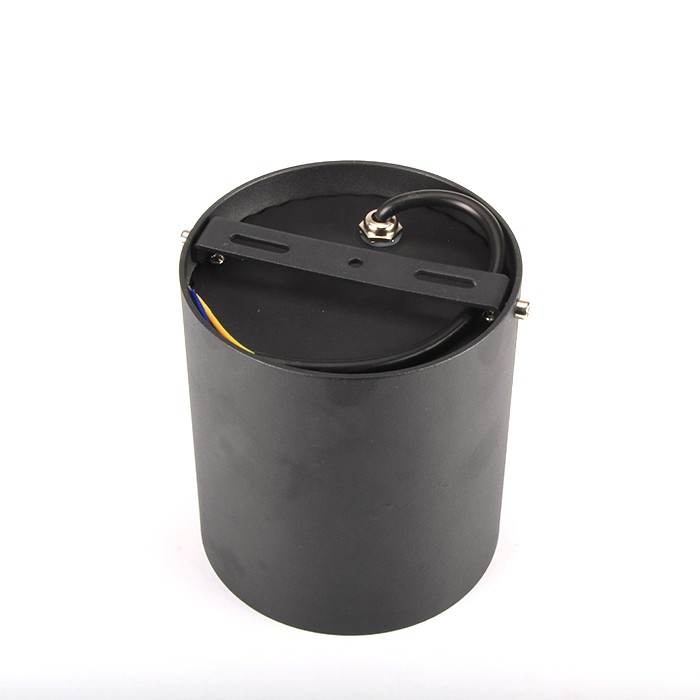

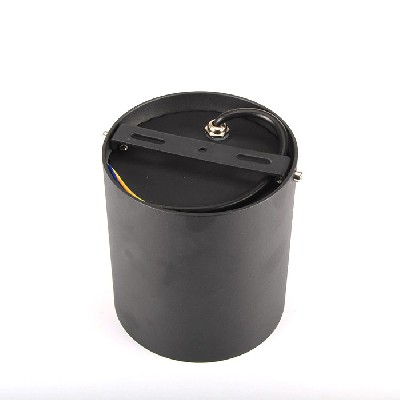

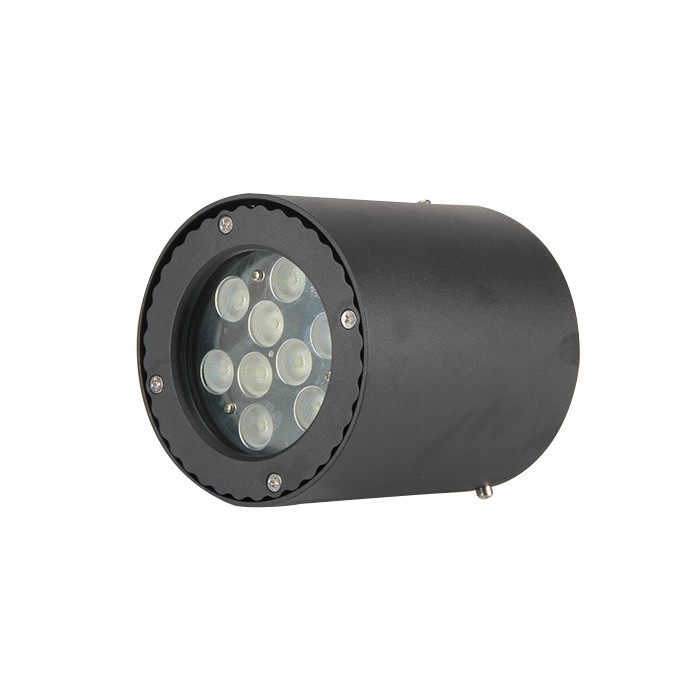

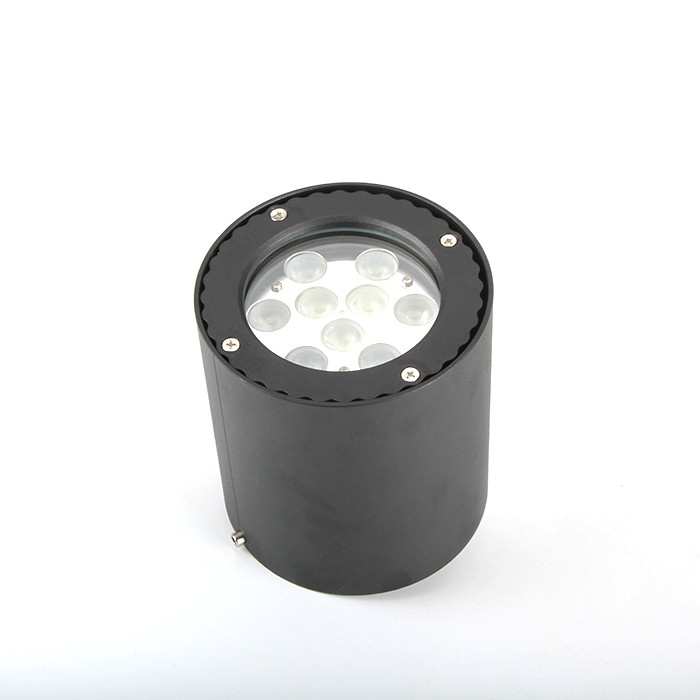

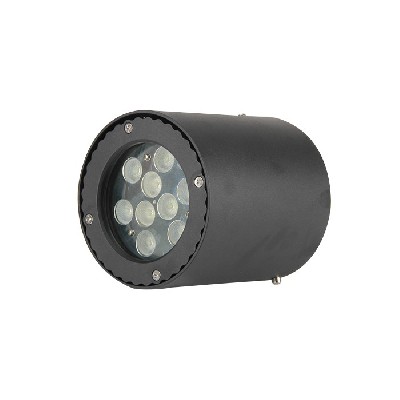

LED tube lamp GMFSTD004
2019-05-23 1229
Place of Origin | Zhongshan | Model | GMFSTD004 | Specifications | Φ135*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 9*2W | light source | Crystal element | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
Place of Origin | Zhongshan | Model | GMFSTD005 | Specifications | Φ165*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 400mA ±5% |
| power | 18*1.5W | light source | Crystal element | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
Place of Origin | Zhongshan | Model | GMFSTD006 | Specifications | Φ195*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 400mA ±5% |
| power | 36*1W | light source | Crystal element | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
