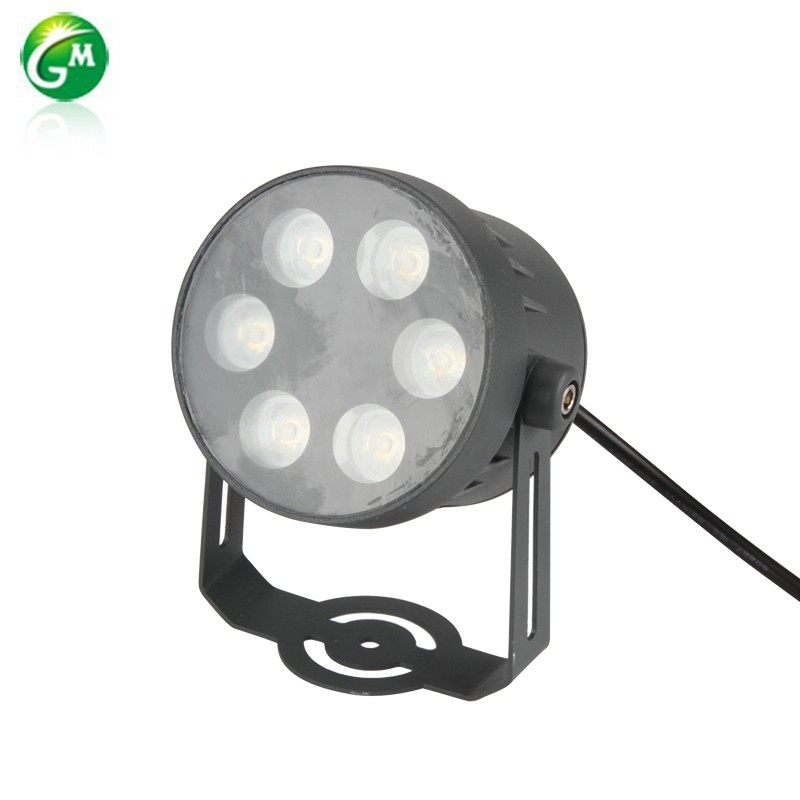

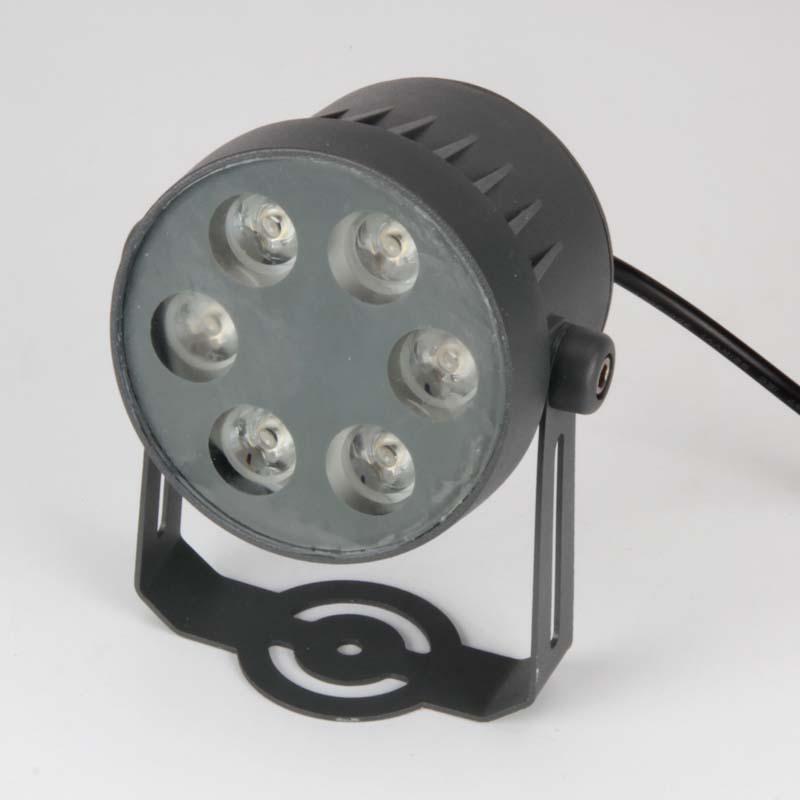

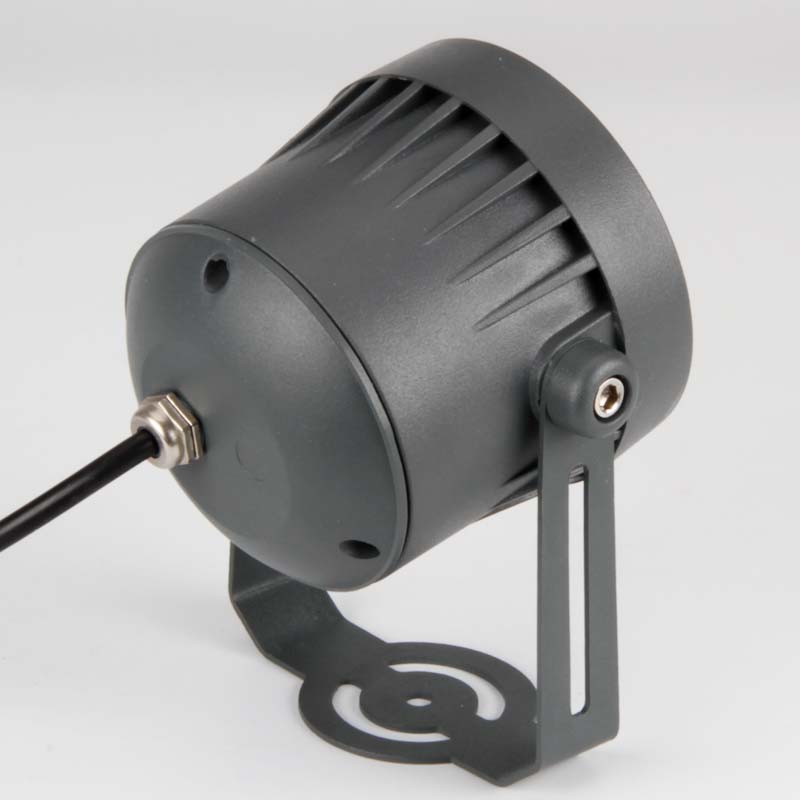

LED light GMTGDD293
2019-01-15 1068
| Place of origin | Zhongshan, Guangdong | model | GMTGDD292 | specification | Φ76*H106MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 600mA ±5% |
power | 3W*2 | light source | Imitation | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 45° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
| Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD293 | specification | Φ103*H138MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 600mA ±5% |
power | 5W*2 | light source | Imitation | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 45° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
| Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD294 | specification | Φ145*H201MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 12W | light source | Imitation | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 45° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD295 | specification | Φ145*H201MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 18W | light source | Imitation | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 45° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD296 | specification | Φ189*H246MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 600mA ±5% |
| power | 24W | light source | Imitation | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 45° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD297 | specification | Φ189*H246MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 900mA ±5% |
| power | 36W | light source | Imitation | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 45° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
